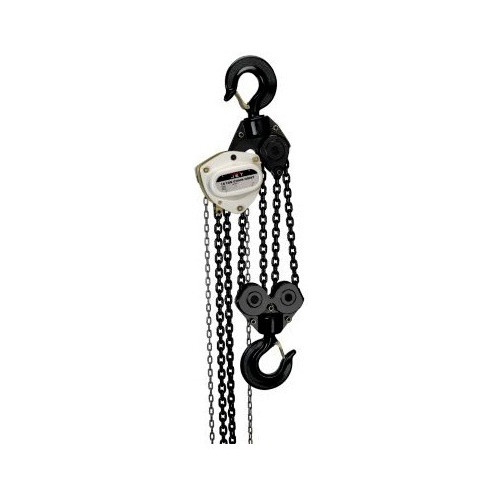

JET L100-150WO-20 1-1/2 Ton Capacity Hoist with 20 ft. Lift and Overload Protection

JET Model: L100-150WO-20
$553.86
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 3-5 days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET L100-150WO-20 1-1/2 Ton Capacity Hoist with 20 ft. Lift and Overload Protection JET Model: L100-150WO-20
price for vip customer
$553.86

OR PAY WITH

Product Features & specs :

JET L100-150WO-20 1-1/2 Ton Capacity Hoist with 20 ft. Lift and Overload Protection

Details

JET L-100 series manual chain hoists combine a true rugged industrial design with highly refined quality culminating in the last manual hoist you may ever need to purchase. The attention to detail in the design of this series is second to none. The drop forged, carbon steel hooks are quenched and tempered to increase strength and will slowly stretch to indicate an overload situation. Cast steel safety latches, attached with Allen head screws and lock nuts, outclass the industry standard of stamped safety latches. The induction hardened, 100 grade load chain provides 20% more strength than the common 80 grade load chain found on inferior hoists. The double enclosed brake cover keeps dirt and debris away from the brake mechanism. While the sealed ball bearing supported load sheave provides efficient and smooth operation.

The investment cast anchor plate, and all other internal parts are fully heat treated and quenched for added strength and reliability. All of the internal parts are zinc coated for additional corrosion protection. The triple spur gear drive train features alloy steel gears that have been heat treated, quenched and then case hardened for a lifetime of service. The patented fused brake disc design means little to no maintenance is required to keep these hoists operational. All L-100 series hoists are factory tested and certified.

Features:

  • All steel construction with a durable powder coat finish

  • Slip clutch design overload protection standard

  • Lightweight, compact design for low headroom application

  • Triple spur gears provide high efficiency with minimum effort

  • Heat treated and hardened premium 100 grade load chain

  • Smooth rolled edge on hand chain cover prevents side pull jamming

  • Drop forged alloy steel safety hooks feature wide throats for ease of rigging

  • Patented fused disc brake offers longer life and ease of replacement

  • Sealed ball bearing supported load sheave

  • Drive pinion supported on both ends with sealed ball bearings

  • Heavy duty cast safety latches

  • Complies with OSHA, ANSI/ASME B30.16 and HST-2 standards

What’s Included:

  • L100-150WO-20, 1-1/2 Ton Capacity Hoist with 20 ft. Lift and Overload Protection - 201120

Number of Falls

1

Volume Capacity

1.5 tons

Load Capacity

1.5 tons

Construction

Alloy Steel

Rated Capacity

1.5 tons

Electronic/Manual

Manual

Load Chain (dia/mm)

7.1 mm x 21 mm

Weight Capacity

3000 lbs

Headroom

13-3/4 in

Standard Lift

20 ft

Weight

48 lbs.

Warranty Term

Lifetime
