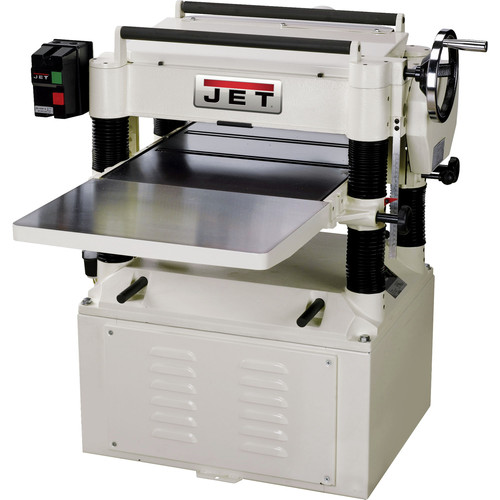

JET JWP-208HH-1 20 in. 5 HP 1-Phase Helical Head Planer

JET Model: JWP-208HH-1

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to chemicals including Lead, a chemical known to the State of California to cause Cancer and Birth Defect/Reproductive Harm and Titanium Dioxide, a chemical known to the State of California to cause Cancer. For more information go to www.P65Warnings.ca.gov.
JET JWP-208HH-1 20 in. 5 HP 1-Phase Helical Head Planer JET Model: JWP-208HH-1

Product Features & specs :

JET JWP-208HH-1 20 in. 5 HP 1-Phase Helical Head Planer

Details

JWP-208HH-1 helical head planer quickly and quietly transforms rough lumber into smooth boards, with a full 20 in. planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments. This machine means business with a powerful 5 HP induction motor combined with a helical insert cutterhead housing 92 staggered carbide knives. You'll appreciate the sets of three steel infeed and outfeed rollers to help prevent annoying snipe. A large cast-iron table with smooth-as-glass surface makes this planer a beautiful addition to the shop. And since planers kick up a lot of dust, we made dust collection easy with an exclusive angled 4 in. dust port to keep your hose out of the way.

Features:

  • Helical cutter head with indexable carbide inserts for a superior finish and quieter cut

  • Heavy-duty cast-iron and steel construction for added strength and durability

  • Large, cast-iron, precision-ground table for precise work piece support

  • Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs

  • Powerful 5 HP TEFC induction motor with three V-belt transmission for smooth and consistent power

  • Positive gear drive moves table quickly and accurately

  • Work table is precision-ground and polished for consistently smooth operation

  • Large hand wheel with positive gear drive allows for quick and accurate table adjustments

  • 1/16 in. increment height scale lets you make the most precise adjustments for fine cuts

  • 5 in. dust port provides efficient chip and dust collection

  • One-piece welded steel base offers solid support and stability

  • Magnetic controls provide long life and reliability

What’s Included:

  • 20 in. 5 HP 1-Phase Helical Head Planer - 708544

Power Source

Corded

PreWired Voltage

230V

Amperage

18

UL Safety

No

Feed Rate - Planing (FPM)

31

Wifi compatibility

No

Material Thickness (Max.)Material Length (Min.)

8 in / 6-3/4 in

Bluetooth Compatibility

No

Cutterhead Speed (RPM)

5000

Planing Depth (Max.)

3/32 in

Motor Type

Brushed

Cutterhead Diameter

3-3/16 in

Planing Width (Max.)

20 in

Dust Port

Yes

No. of Knives

92

Knife Width

15 in

Knife Thickness

2.5 in

Feed Rate - Moulding (FPM)

24

CSA Safety

No

Dust Port Size

5 in

Knife Length

15 in

Motor Phase

1

Horsepower

5

Voltage

230V

Bench-Top

No

ETL Safety

No

Length

26 in.

Width

36.63 in.

Height

41.5 in.

Weight

640 lbs.

Warranty Term

5 Year

Reviews :

Q & A :

Warranty:

JET RED ASSURANCE Program


Do you know about the JET RED ASSURANCE Program? Well, the JET RED ASSURANCE Program was designed to make sure you do! JET has the best and most dependable service in the Industry and they want to make sure you know about it. In addition, to their standard warranty JET offers the Industry's most dependable service and support guarantee. Click here to learn more about what JET RED ASSURANCE can do for you!


5-Year

WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET® tools. For the name of an Authorized Service Center in your area, call 1-800-274-6848.

MORE INFORMATION
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.

WARRANTY

This JET product carries a limited five-year warranty.

WHAT IS COVERED
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.

WHO IS COVERED
This warranty covers only the initial purchaser of the product.

WHAT IS THE PERIOD OF COVERAGE
The general JET warranty lasts for the time period specified in the product literature of each product.

WHAT IS NOT COVERED
Five Year Warranties do not cover woodworking (WW) products used for commercial, industrial or educational purposes. Woodworking products with Five Year Warranties that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.

HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.

HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.

LIMITATIONS ON THIS WARRANTY
WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
