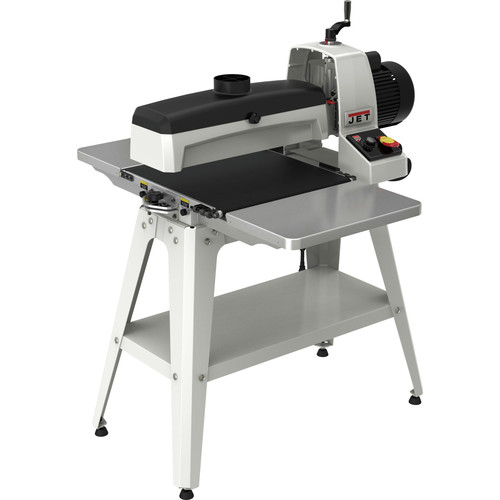

JET JWDS-1836 Drum Sander with Stand

JET Model: JWDS-1836

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET JWDS-1836 Drum Sander with Stand JET Model: JWDS-1836

Product Features & specs :

JET JWDS-1836 Drum Sander with Stand

Details

Introducing the newly designed JET JWDS-1836 Drum Sander from JET. The 1.75 horsepower motor delivers plenty of power to handle just about any sanding task. The innovative tool-less parallelism system keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial. The variable-speed rate permits you to choose the optimal feed rate for a full range of projects, while the Sandsmart feature continuously monitors the load on the drum motor to prevent an overload situation. The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish. The JWDS-1836 Drum Sander delivers everything you need for an effortless finish.

Features:

  • Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload

  • Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position

  • Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required

  • Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 in. collection port

  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage

  • Precision-flattened reinforced steel conveyor bed

  • Redesigned conveyor system pulls the workpiece through the sander instead of pushing

  • One rotation of the top-position handwheel adjusts the drum height by 1/16 in.

  • The relative depth scale on the handwheel allows the user to reset and measure the depth for every project

What’s Included:

  • Stand

Power Source

Corded

Board Width (Min.)

16 in

PreWired Voltage

115V

Amperage

15

UL Safety

No

Drum Speed (RPM)

1725

Board Thickness (Min.)

1/32 in

Wifi compatibility

No

Conveyor Speed (FPM)

0 - 10

Bearing Diameter

OD - 52 mm

Bluetooth Compatibility

No

Motor Type

Brushed

Board Length (Min.)

2-3/8 in

Drum Length

18 in

Board Thickness (Max.)

3 in

CSA Safety

Yes

Dust Port Size

4 in

Conveyor Motor

43 in-lbs Torque/Direct Drive/DC

Motor Phase

1

Horsepower

1.75

Voltage

115V

Drum Diameter

5 in

ETL Safety

No

Length

20 in.

Width

49.94 in.

Height

39.63 in.

Weight

156 lbs.

Warranty Term

5 Year
