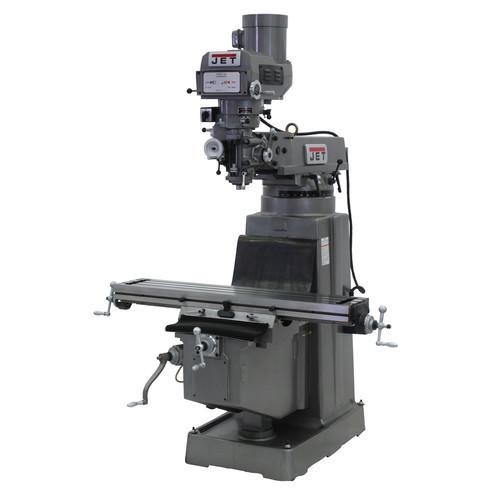

JET JTM-1050 230V Variable Speed Milling Machine with 3-Axis Newall DP700 DRO (Knee)

JET Model: JTM-1050

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Cadmium, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET JTM-1050 230V Variable Speed Milling Machine with 3-Axis Newall DP700 DRO (Knee) JET Model: JTM-1050

Product Features & specs :

JET JTM-1050 230V Variable Speed Milling Machine with 3-Axis Newall DP700 DRO (Knee)

Details

The JET JTM-1050 features Meehanite castings, a heavy-duty hardened and ground 10 in. x 50 in. table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.

Features:

  • Certified Meehanite Castings

  • Hardened and ground table

  • Chrome lead screws on X and Y axis

  • Turcite B on X and Y axis

  • Satin chrome finish on dials

  • Precision bored and honed milling head

  • Large diameter quill is chromed

  • High precision Class 7 spindle bearing

  • Spindle head is internally cooled

  • No fuse breaker power connection

What’s Included:

Power Source

Corded

PreWired Voltage

460V

UL Safety

No

Wifi compatibility

No

Spindle to Table Distance

19 in

Collet Capacity

1/8 in - 7/8 in

Spindle Speeds

Variable

Bluetooth Compatibility

No

Longitudinal Table Travel (X-Axis)

35 in

Motor Type

Brushed

Quill Down Feed Rates

0.0015 / 0.003 / 0.006

Quill Diameter

3-3/8 in

Head Movement

90 Degrees R/L 45 Degrees F/B

Table Capacity (lbs.)

720 lbs

T-Slot Size

5/8 in

Ram Travel

20-1/2 in

Spindle Speed Range

70 - 3800

CSA Safety

No

T-Slot Centers

2-1/2 in

Table Size

10 in x 50 in

Spindle Taper

R-8

Motor Phase

3

Spindle to Column Distance

5-1/2 - 26 in

Horsepower

3

Voltage

230V

No. of T-Slots

3

Spindle Travel

5 in

Cross Travel (Y-Axis)

15-1/4 in

ETL Safety

No

Length

96 in.

Width

78 in.

Height

88 in.

Weight

2900 lbs.

Warranty Term

2 Year
