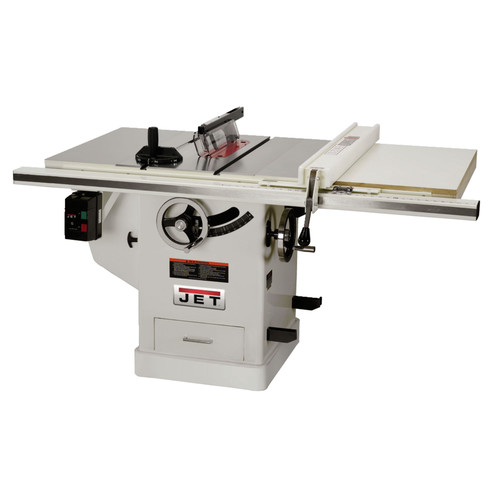

JET JTAS-10XL30-1DX 3 HP 10 in. Single Phase Left Tilt Deluxe XACTA Table Saw with 30 in. XACTAFence II

JET Model: JTAS-10XL30-1DX

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET JTAS-10XL30-1DX 3 HP 10 in. Single Phase Left Tilt Deluxe XACTA Table Saw with 30 in. XACTAFence II JET Model: JTAS-10XL30-1DX

Product Features & specs :

JET JTAS-10XL30-1DX 3 HP 10 in. Single Phase Left Tilt Deluxe XACTA Table Saw with 30 in. XACTAFence II

Features:

  • Exclusive 30 in. Commercial XACTA, Fence II with T-square design

  • Quick-release riving knife greatly reduces binding and kickback risk

  • Shrouded blade increases dust collection efficiency

  • Push button arbor lock for rapid blade change

  • Standard 11 in. left and right cast-iron extension wings provides the largest table surface in its class

  • Poly-V drive belt system delivers efficient, quiet operation

  • Rail-mounted magnetic switch is easy to reach and provides overload protection

  • Enclosed cabinet with built-in sealed storage drawer

  • Hinged motor cover on cabinet gives quick access to the motor and belts

  • Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters

  • Heavy-duty chrome plated hand wheels contribute to smooth trunnion and arbor movement

  • Built-in 4 in. port for dust collection

  • Precision-ground, high-luster cast-iron table top with front edge bevel for hassle-free work piece positioning

  • Left tilt, wide stance heavy-duty trunnion for stability and smooth blade positioning

  • Independent leaf safety guard protects operator from blade while cutting - even at a 45, tilt

What’s Included:

  • JTAS-10XL30-1DX, 3 HP 10 in. Single Phase Left Tilt Deluxe XACTA Table Saw w/ 30 in. XACTA, Fence II - 708674PK

  • 30 in. XACTA, Fence II

Blade Diameter

10 in

Depth of Cut (45 Degrees)

2-1/8 in

Power Source

Corded

Blade Guard System

No

Bluetooth Compatibility

No

Dado Blade Width (Max.)

13/16 in

Table Width

20 in

Table Height

34 in

Motor Phase

1

Fence Length

30 in

PreWired Voltage

230V

Dust Collection

Yes

Table Type

Cast Iron

Blade Tilt

Left

Horsepower

3

Motor Type

Brushed

Voltage

230V

Amperage

14.5

UL Safety

No

Blade Tilt Range

0 - 45 Degrees

No-Load Speed (RPM)

4300

Table Depth

29 in

Depth of Cut (90 Degrees)

3 in

Max. Rip Capacity (Right)

30 in

CSA Safety

No

Wifi compatibility

No

Dado Blade Diameter (Max.)

8 in

Rip Capacity (Left)

13 in

Table Width (w/ Extension)

42 in

Arbor Size

5/8 in

ETL Safety

No

Extension Type

Laminate Table

Rip Capacity (Right)

30 in

Length

65 in.

Width

36 in.

Height

38 in.

Weight

490 lbs.

Warranty Term

5 Year

Reviews :

Q & A :

Warranty:

JET RED ASSURANCE Program


Do you know about the JET RED ASSURANCE Program? Well, the JET RED ASSURANCE Program was designed to make sure you do! JET has the best and most dependable service in the Industry and they want to make sure you know about it. In addition, to their standard warranty JET offers the Industry's most dependable service and support guarantee. Click here to learn more about what JET RED ASSURANCE can do for you!


5-Year

WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET® tools. For the name of an Authorized Service Center in your area, call 1-800-274-6848.

MORE INFORMATION
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.

WARRANTY

This JET product carries a limited five-year warranty.

WHAT IS COVERED
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.

WHO IS COVERED
This warranty covers only the initial purchaser of the product.

WHAT IS THE PERIOD OF COVERAGE
The general JET warranty lasts for the time period specified in the product literature of each product.

WHAT IS NOT COVERED
Five Year Warranties do not cover woodworking (WW) products used for commercial, industrial or educational purposes. Woodworking products with Five Year Warranties that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.

HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.

HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.

LIMITATIONS ON THIS WARRANTY
WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
