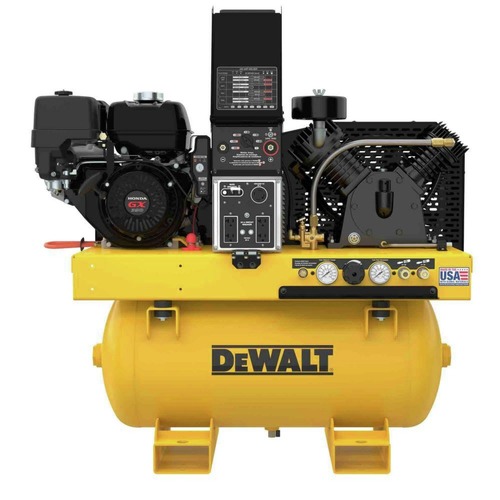

Dewalt 200 Amp 5500 Watts 2-Stage 30 Gallon 175 Max PSI Gasoline Engine Driven 3-in-1 Air Compressor/Generator/Welder

Dewalt Model: DXCMCGW1330

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Dewalt 200 Amp 5500 Watts 2-Stage 30 Gallon 175 Max PSI Gasoline Engine Driven 3-in-1 Air Compressor/Generator/Welder Dewalt Model: DXCMCGW1330

Product Features & specs :

Dewalt DXCMCGW1330 200 Amp 5500 Watts 2-Stage 30 Gallon 175 Max PSI Gasoline Engine Driven 3-in-1 Air Compressor/Generator/Welder

Details

Save space in the truck with a DEWALT 3-in-1. This gas-powered unit combines an air compressor, generator, and welder into one product that is ideal for on-site agricultural, industrial, and construction jobs where electricity is not available. This unit features a 2-stage cast iron pump providing enough air to run 2 lines simultaneously. The 5,500 Watts generator (6,050 Surge Watts) is equipped with GFCI protected outlets. And the 200 Amp DC stick welder includes a color coordinated amperage selector dial and toggle switch for easy weld settings. The horizontal 30 gallon ASME tank conveniently mounts to most truck beds. All of this is powered by a dependable GX390 Honda gas engine with electric start driving a flat multi-v groove belt system providing optimum performance for the compressor, generator, and welder.

Features:

  • The DEWALT 3-in-1 30 Gallon Air Compressor-Generator-Welder supports the products needed for commercial service trucks, remote agricultural field service, construction, and industrial applications.

  • The 2-stage air compressor provides 13.6 SCFM @ 100 PSI to run the most demanding air tools.

  • The 50-200 Amp DC welder is designed for shielded metal arc welding and is capable of welding steel, stainless steel, and cast iron alloys between 1/16 in. minimum to 1/2 in. maximum thickness.

  • The generator providing 5,500 Watts of continuous power is also incorporated into this system. Equipped with a GFCI protected generator panel that includes (2) 120V 20 Amp duplex receptacles, and (1) 120/240V 30 Amp twist lock receptacle.

  • The 30 gallon horizontal truck mount tank meets the requirements of the ASME boiler and pressure vessel code.

  • The DEWALT 3-in-1 Compressor-Generator-Welder is powered by an electric start Honda GX390 gas engine and is perfect for those remote jobs when electricity is not available.

What’s Included:

  • 200 Amp 5500 Watts 2-Stage 30 Gallon 175 Max PSI Gasoline Engine Driven 3-in-1 Air Compressor/Generator/Welder - DXCMCGW1330

Power Source

Gas

Drive System

Belt Drive

Amperage

200

Engine Make

Honda

Engine Speed (RPM)

3600

Wattage (Rated)

5500

Type

Air Compressor/Generator/Welder

Tank Construction

Cast Iron

Tank Orientation

Horizontal

Outlet Type(s)

GFCI

Rated Watts

5500

Tank Capacity

30 gal

Engine Model

GX390

Pump Type

Twin-Cylinder

Starter Type

Electric

Voltage

120V

Engine Displacement

389cc

Length

49.13 in.

Width

23 in.

Height

40.5 in.

Weight

555 lbs.

Warranty Term

2 Year-Pump, 1 Year-All Other Parts
