Dewalt 20V MAX XR Brushless Lithium-Ion L-Shape SDS Plus 1-1/8 in. Cordless Rotary Hammer Drill (Tool Only)

Dewalt Model: DCH293B
Price reduced from $449.00 to Save 17% $371.99
promo-icon

Incredible Savings Every Week with Our Weekly Markdowns! See Details

See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping

Update Delivery Times
Enter your ZIP code to estimate delivery times.

alert warning icon

  • Last 3 In Stock

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Dewalt 20V MAX XR Brushless Lithium-Ion L-Shape SDS Plus 1-1/8 in. Cordless Rotary Hammer Drill (Tool Only) Dewalt Model: DCH293B
price for vip customer
Price reduced from $449.00 to Save 17% $371.99

OR PAY WITH

Product Features & specs :

3.5 Joules And 1000 RPM For Fast Drilling In Concrete

Effortless Drilling

3.5 Joules and 1000 RPM instantly drills through concrete

Part Of The DeWalt SDS PLUS Hammer Family

Part Of The DeWalt SDS PLUS Hammer Family

Cordless Rotary Hammer Drill is part of the DeWalt SDS PLUS Hammer Family

ACTIVE-ROTATION E-CLUTCH System

Smart Protection

ACTIVE-ROTATION E-CLUTCH System helps shut down the Tool in bind up situations

Reduces Silica Dust Exposure

OSHA Compliant

Reduces Silica Dust exposure for added safety in the jobsite

Compatible with a Wide Range of 20V MAX Batteries to fit your needs

Dewalt DCB203 battery for lightweight usage

More Compact 2 Ah

Dewalt DCB230 battery

3 Ah

Dewalt DCB204 battery

4 Ah

Dewalt DCB205 battery

5 Ah

Dewalt DCB206 battery

6 Ah

Dewalt DCB612 battery with long run time

More Runtime 12 Ah

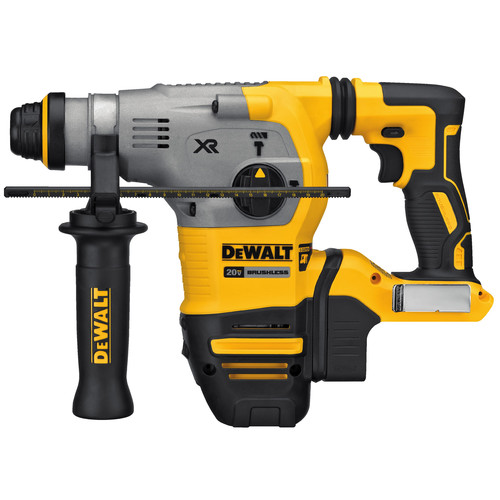

Dewalt DCH293B 20V MAX XR Brushless Lithium-Ion L-Shape SDS Plus 1-1/8 in. Cordless Rotary Hammer Drill (Tool Only)

Details

The 20V MAX XR Brushless 1-1/8 in. Rotary Hammer is a high-performance drill powered by a brushless motor and a durable German-engineered mechanism, delivering 3.5 Joules of impact energy. The lightweight design makes this rotary hammer ideal for structural connections, beam and column anchorage, rod hanging, seismic and safety attachments, cable tray and strut mounting, and steel stanchion mounting. It is part of the PERFORM and PROTECT product line, integrated with the Anti-Rotation E-CLUTCH System and the SHOCKS ACTIVE VIBRATION CONTROL System. E-CLUTCH protects the user in bind-up situations by stopping the rotation of the bit. SHOCKS reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. This hammer becomes OSHA Table 1 Compliant when used with the DWH304DH On Board Extractor.

Features:

  • 3.5 Joules of impact energy for fast drilling in concrete

  • Anti-Rotation E-CLUTCH System protects the user in bind up situations by stopping the rotation of the bit

  • Lightweight design makes this tool ideal for structural connections, beam and column anchorage, rod hanging, seismic and safety attachments, cable tray, strut mounting, and steel stanchion mounting

  • SHOCKS ACTIVE VIBRATION CONTROL System reduces vibration felt by the user at the handles, compared to rotary hammers without this feature

  • Brushless motor and durable German-engineered mechanism for efficient performance and runtime

  • OSHA Table 1 compliant when paired with DWH304DH On Board Extractor

  • Rotating Dial to set tool to a specific applicaiton mode - Drill, Hammer Drill, or Chip

  • 20V MAX; Maximum initial battery voltage (measured without a workload) is 20V; nominal voltage is 18V

What’s Included:

  • 20V MAX XR Brushless Lithium-Ion L-Shape SDS Plus 1-1/8 in. Rotary Hammer Drill - DCH293B

  • Battery and charger sold separately

Power Source

Cordless

Blows Per Minute(BPM)

4480

UL Safety

Yes

Power Type

Electric - Cordless

Clutch Settings

Yes

Wifi compatibility

No

Batteries Included

0

Battery Type

Li-Ion

Clutch

Yes

Chuck Size

1-1/8 in

Number of Tools

1

Bluetooth Compatibility

No

Variable Speed Trigger

Yes

No-Load Speed (BPM)

0 - 4480

Motor Type

Brushless

Charger Included

No

Impact Energy

3.6 Joules

Power Settings

1

No-Load Speed (RPM)

0 - 1000

CSA Safety

No

Case Included

No

Voltage

20V

Handle Type

D

Chuck Type

SDS-Plus

ETL Safety

No

Battery System

20V MAX

Series

XR

Length

15.350 in.

Width

4.300 in.

Height

10.63 in.

Weight

5 lbs.

Warranty Term

2 Year
