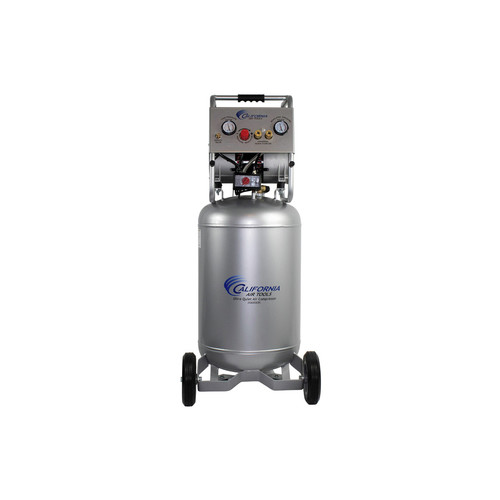

California Air Tools 2 HP 20 Gallon Oil-Free Vertical Air Compressor

California Air Tools Model: CAT-20020CR

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Benzene, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
California Air Tools 2 HP 20 Gallon Oil-Free Vertical Air Compressor California Air Tools Model: CAT-20020CR

Product Features & specs :

California Air Tools CAT-20020CR 2 HP 20 Gallon Oil-Free Vertical Air Compressor

Details

The CALIFORNIA AIR TOOLS 20020CR Continuous Run (100% Duty Cycle) Ultra Quiet and Oil-Free Air Compressor is designed to be one of the quietest 2 HP air compressors in the industry having only 77 decibels of sound. The Powerful 2 HP motor operates at only 1700 RPM creating less noise and less wear. The CR Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. Up to 8 hours of continuous running at 90 PSI and 12 hours at 40 PSI.

The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-20020CR Air Compressor has an Oil-Free Dual Piston pump designed to have a life cycle before wear of 5000 Plus hours. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The large 20 Gallon Steel Air Tank is designed to store more air for higher demand air tools such as spray guns and sanders. Prefect for the shop or garage. The 2 (no flat) wheels makes moving this air compressor very easy. Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise.

Features:

  • Ultra Quiet at only 77 Decibels

  • Continuous Oil-Free Pump for Less Maintenance and Costs

  • 20 Gallon Steel Tank with Wheels

  • Portable and easy to store

  • Powerful 2 HP (Rated / Running) Motor

  • 6.50 CFM At 40 PSI and 5 CFM at 90 PSI

  • Low amp draw - 14 Amps

  • Maximum Pressure - 125 PSI

  • (2)Pressure Control Gauges

  • (2) 1/4 in. Universal Quick Connectors

What’s Included:

  • 2 HP 20 gal Oil-Free Vertical Air Compressor - CAT-20020CR

  • (2-Pc.) Air Filters

  • (2-Pc.) #51 Wheel Bolts

  • (4-Pc.) #49 Washers

  • (2-Pc.) #50 Wheels

  • (2-Pc.) #48 Nuts

  • (2-Pc.) #84 Bolts

  • (2-Pc.) #83 Cushion Foot

  • (4-Pc.) #82Washers

  • (2-Pc.) #81 Nuts

  • Owner's Manual

Power Source

Pneumatic

Lubrication System

Oil-Free

Amperage

14

Power Type

Electric

Pump Speed (RPM)

1700

Motor Type

Single Phase

Tank Construction

Steel

Tank Orientation

Vertical

Tank Capacity

20 gal

Operating Pressure (PSI)

125

Lubrication

Oil-Free

No-Load Speed (RPM)

1700

Pump Type

Oil-Free

Phase

1

Air Inlet Size

1/4 in

RPM

1700

Horsepower

2

Air Consumption at 90 PSI (SCFM)

5

Voltage

110V

Fitting Size

1/4 in

Air Consumption at 40 PSI (SCFM)

6.50

Running Horsepower

2

Noise Rating (dBA)

77

Length

20 in.

Width

20 in.

Height

46 in.

Weight

114 lbs.

Warranty Term

1 Year
